Duplex 2205 Fasteners for Offshore and Chloride Corrosion Environments
Aurum Overseas is a trusted Duplex 2205 / UNS S32205 fasteners suppliers & exporters offering high-strength duplex stainless steel fastening solutions for offshore platforms, desalination plants, refinery systems, marine engineering, and chloride-intensive industrial applications. Duplex 2205 fasteners are widely used where conventional stainless steel fasteners fail due to pitting corrosion, crevice corrosion, and chloride stress corrosion cracking.
The duplex austenitic-ferritic structure of UNS S32205 provides a combination of high mechanical strength and exceptional corrosion resistance, making these fasteners highly suitable for seawater systems, subsea infrastructure, pressure vessels, and offshore piping assemblies operating under aggressive industrial conditions.
Industrial buyers across USA, Europe, UAE, Saudi Arabia, Qatar, Oman, and other Gulf countries increasingly prefer Duplex 2205 fasteners for offshore and petrochemical systems requiring long service life, reduced maintenance, and dependable corrosion resistance in chloride-rich environments.
Duplex 2205 Fasteners Specifications
| Specification | Details |
|---|---|
| Material Grade | Duplex 2205 / UNS S32205 |
| European Grade | EN 1.4462 |
| ASTM Standards | ASTM A182 F60, ASTM A276, ASTM A479 |
| ASME Standards | ASME SA182, SA479 |
| NACE Compliance | NACE MR0175 / ISO 15156 |
| Thread Standards | Metric, UNC, UNF, BSW |
| Size Range | M3 to M56 and custom sizes |
| Length Range | 3 mm to 200 mm+ |
| Fastener Types | Bolts, Nuts, Washers, Stud Bolts, Threaded Rods |
| Surface Finish | Pickled, Passivated, PTFE Coated |
| Inspection | PMI, Hardness, Ferrite, Tensile Testing |
| Certification | EN 10204 3.1 / 3.2 |

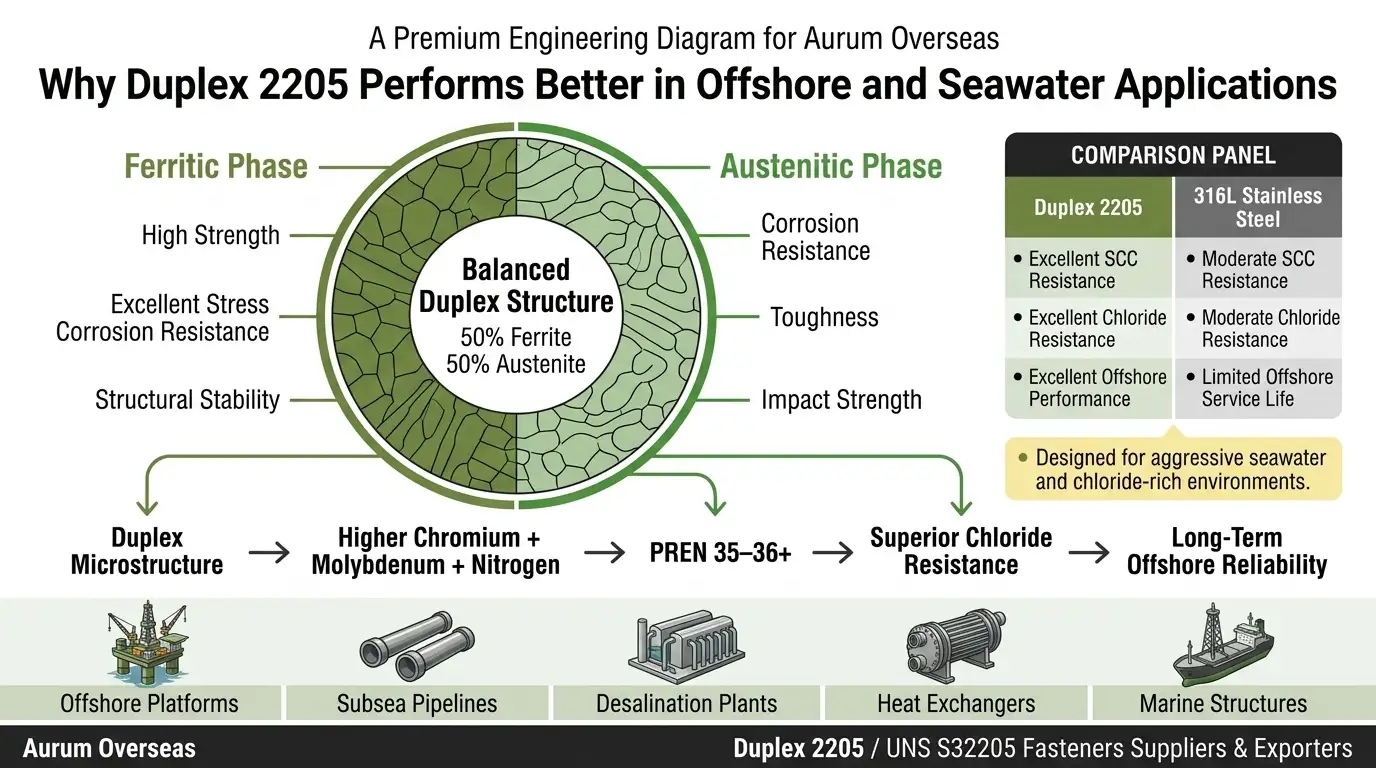

Duplex Austenitic-Ferritic Metallurgy and Mechanical Properties of UNS S32205 Fasteners
Duplex 2205 fasteners are manufactured using a balanced microstructure containing nearly equal proportions of ferritic and austenitic phases. This dual-phase structure significantly improves chloride corrosion resistance and mechanical strength compared to conventional stainless steel grades such as 304 and 316L.
The higher chromium, molybdenum, and nitrogen content in UNS S32205 improves resistance to seawater corrosion, localized pitting, and chloride stress corrosion cracking. These properties make Duplex 2205 fasteners highly reliable for offshore engineering, pressure systems, and marine process environments.
Resistance to Chlorides, Seawater and Stress Corrosion Cracking
Duplex 2205 fasteners are specifically designed for chloride-rich environments where conventional stainless steels experience premature corrosion failure. Their high PREN value of approximately 35–36+ provides superior resistance to pitting corrosion and crevice corrosion in offshore and desalination systems.
The duplex structure also offers strong resistance to chloride stress corrosion cracking under tensile loading and elevated temperatures. This makes Duplex 2205 fasteners highly suitable for subsea piping, offshore drilling systems, refinery pressure equipment, and seawater cooling applications.
The alloy performs effectively in sour gas environments involving H₂S, CO₂, industrial acids, and aggressive process chemicals commonly encountered in offshore oil & gas and petrochemical industries.
Duplex 2205 vs 316L Stainless Steel Fasteners
| Property | Duplex 2205 | SS 316L |
|---|---|---|
| PREN Value | 35–36+ | ~25 |
| Yield Strength | 450+ MPa | 170 – 200 MPa |
| SCC Resistance | Excellent | Poor |
| Chloride Resistance | Excellent | Moderate |
| Offshore Suitability | Highly Recommended | Limited |
| Desalination Applications | Excellent | Moderate |
| Pressure System Performance | Superior | Standard |
ASTM, ASME, EN, NACE and Offshore Compliance Standards
Duplex 2205 fasteners supplied by Aurum Overseas comply with major offshore, refinery, petrochemical, and EPC engineering standards required across USA, Europe, and Gulf countries.
| Standard | Description |
|---|---|
| ASTM A182 F60 | Duplex forged components |
| ASTM A276 | Stainless steel bars |
| ASTM A479 | Pressure-service stainless bars |
| ASME SA182 | Pressure equipment specification |
| NACE MR0175 | Sour gas compliance |
| ISO 15156 | Oil & gas material standard |
| API 20E | Offshore bolting systems |
| EN 1.4462 | European duplex designation |
| NORSOK | North Sea offshore compliance |
Manufacturing Range, Thread Standards and Types of Duplex 2205 Fasteners
Duplex 2205 fasteners are manufactured for offshore structures, refinery systems, marine assemblies, subsea pipelines, pressure vessels, and industrial process equipment requiring corrosion-resistant fastening systems.
| Fastener Type | Industrial Application |
|---|---|
| Hex Bolts | Offshore structural systems |
| Heavy Hex Bolts | High-pressure assemblies |
| Stud Bolts | Flange connections |
| Threaded Rods | Pipe support systems |
| Socket Screws | Industrial machinery |
| Anchor Bolts | Structural foundations |
| U-Bolts | Marine piping installations |
| Hex Nuts | Pressure equipment fastening |
| Lock Washers | Vibration-resistant assemblies |
Thread and Size Range
| Parameter | Range |
|---|---|
| Metric Sizes | M3 to M56 |
| Imperial Sizes | 3/8" to 2" |
| Thread Types | UNC, UNF, Metric, BSW |
| Rod Length | Up to 6 meters |
| Custom Manufacturing | Available |
Example Duplex 2205 Hex Bolt Dimensions
| Nominal Size | Body Dia Max | Head Height Max | Across Flats | Across Corners |
|---|---|---|---|---|
| M10 | 10.00 mm | 6.63 mm | 17.00 mm | 18.48 mm |
| M12 | 12.00 mm | 7.76 mm | 19.00 mm | 20.78 mm |
| M14 | 14.00 mm | 9.09 mm | 22.00 mm | 24.25 mm |
| M16 | 16.00 mm | 10.32 mm | 24.00 mm | 27.71 mm |
Approximate Torque Values for Duplex 2205 Bolts
| Nominal Diameter | Threads Per Inch | Dry Torque | Lubricated Torque |
|---|---|---|---|
| 1/4" | 20 | 6.5 ft-lb | 4.8 ft-lb |
| 3/8" | 16 | 23.5 ft-lb | 17.7 ft-lb |
| 1/2" | 13 | 57 ft-lb | 43 ft-lb |
| 5/8" | 11 | 115 ft-lb | 86 ft-lb |
Proper lubrication and engineering torque specifications should always be followed during installation.
Surface Finishes Available for Duplex 2205 Fasteners
| Finish Type | Industrial Purpose |
|---|---|
| Pickled Finish | Removes oxide contamination |
| Passivated Finish | Improves corrosion resistance |
| PTFE Coated | Reduces galling during assembly |
| Machined Finish | Precision engineering use |
Heat Treatment of Duplex 2205 Fasteners
| Process | Temperature Range | Purpose |
|---|---|---|
| Solution Annealing | 1020 – 1100 °C | Restores corrosion resistance |
| Rapid Water Quench | Immediate cooling | Maintains duplex balance |
Testing and Inspection of Duplex 2205 Fasteners
| Inspection Type | Purpose |
|---|---|
| PMI Testing | Material verification |
| Ferrite Testing | Duplex phase balance |
| Tensile Testing | Mechanical strength validation |
| Hardness Testing | Surface hardness control |
| ASTM G48 Testing | Pitting corrosion resistance |
| Dimensional Inspection | Precision compliance |
All fasteners are supplied with EN 10204 3.1 / 3.2 certification and full material traceability.
Applications in Offshore, Desalination and Petrochemical Industries
Duplex 2205 fasteners are extensively used in offshore oil & gas platforms, subsea piping systems, pressure vessels, desalination plants, heat exchangers, refinery infrastructure, and marine engineering systems operating under chloride-intensive conditions.
Their high mechanical strength and excellent seawater corrosion resistance make them highly suitable for Gulf desalination plants, North Sea offshore platforms, and Gulf of Mexico offshore infrastructure requiring long-term structural reliability.
| Region | Major Industries | Typical Applications |
|---|---|---|
| USA | Offshore Oil & Gas | Pipelines, wellheads, manifolds |
| Europe | North Sea Offshore | Offshore wind and subsea systems |
| Gulf Countries | Desalination & Petrochemical | Heat exchangers, seawater piping |
Duplex 2205 Fasteners Suppliers in USA for Offshore and Petrochemical Industries
Aurum Overseas supplies Duplex 2205 fasteners in USA supporting Gulf of Mexico offshore operations, shale infrastructure, refinery systems, and chemical processing facilities requiring ASTM, API, ASME, and NACE compliant fastening solutions.
Industrial buyers across Texas, Houston, Louisiana, and other US offshore regions prefer Duplex 2205 fasteners for their excellent sour service resistance, chloride corrosion protection, and long-term offshore reliability.
Duplex 2205 Fasteners Exporters in Europe for Offshore and Marine Engineering Standards
Aurum Overseas exports Duplex 2205 fasteners to Europe supporting offshore engineering projects across Norway, Germany, Netherlands, France, Italy, and the United Kingdom.
European EPC contractors and offshore engineering companies utilize Duplex 2205 fasteners in North Sea platforms, offshore wind structures, pressure systems, and marine processing equipment requiring EN 1.4462, PED, ISO, and NORSOK compliance.
Duplex 2205 Fasteners Supply to UAE, Saudi Arabia and Gulf Offshore Industries
Aurum Overseas supplies Duplex 2205 fasteners to UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain supporting desalination plants, petrochemical projects, refinery systems, and offshore platforms operating in high-temperature chloride-rich Gulf environments.
The alloy provides excellent resistance to hot seawater corrosion and chloride stress corrosion cracking, making it highly suitable for ADNOC, Aramco, and EPC-driven industrial projects across Gulf countries.
Export Packaging and Global Logistics Support
Duplex 2205 fasteners are packed using VCI protective materials, sealed export cartons, and fumigated wooden crates to prevent moisture contamination and transit damage during international transportation.
Complete export documentation, heat number traceability, and industrial packaging systems ensure reliable global supply support for offshore and EPC project deliveries.
Why Industrial Buyers Choose Aurum Overseas
Aurum Overseas is a trusted Duplex 2205 fasteners suppliers & exporters partner supporting offshore engineering firms, refinery operators, EPC contractors, and industrial buyers worldwide.
Our expertise in duplex metallurgy, corrosion-resistant engineering, export logistics, and offshore fastening systems allows us to deliver certified high-performance fastening solutions tailored for aggressive chloride and seawater environments.
Duplex Fasteners Grades Comparison for Offshore and Corrosion Applications
Duplex 2205 fasteners are widely used in offshore platforms, desalination plants, and petrochemical systems requiring superior chloride corrosion resistance and high mechanical strength. For moderate process environments and industrial pressure systems, buyers can also explore Duplex S31803 Fasteners suppliers & exporters , while the complete Duplex Fasteners suppliers & exporters range supports offshore, refinery, marine, and EPC engineering applications worldwide.
FAQs – Duplex 2205 Fasteners
1. Why are Duplex 2205 fasteners preferred over 316L stainless steel?
Duplex 2205 fasteners provide significantly higher yield strength and superior resistance to chloride
corrosion compared to 316L stainless steel. They are widely preferred for offshore and seawater
applications where 316L experiences stress corrosion cracking and localized corrosion.
2. Are Duplex 2205 fasteners suitable for offshore oil & gas projects?
Yes, Duplex 2205 fasteners are extensively used in offshore platforms, subsea systems, pipelines,
manifolds, and pressure equipment because of their excellent resistance to seawater corrosion,
chlorides, and sour gas environments.
3. Can Duplex 2205 fasteners be used in desalination plants?
Duplex 2205 fasteners are highly suitable for desalination systems including evaporators, seawater
intake systems, heat exchangers, and reverse osmosis infrastructure exposed to continuous
chloride-rich seawater conditions.
4. What certifications are supplied with Duplex 2205 fasteners?
Aurum Overseas supplies Duplex 2205 fasteners with EN 10204 3.1 / 3.2 certification, PMI reports,
ferrite testing reports, hardness testing, and third-party inspection documentation according to EPC
and offshore project requirements.
5. Do you export Duplex 2205 fasteners globally?
Yes, we export Duplex 2205 fasteners across USA, Europe, UAE, Saudi Arabia, Qatar, Oman, Kuwait,
Bahrain, and other international industrial markets with complete export logistics and project
support.
Request a Quote for Duplex 2205 / UNS S32205 Fasteners
Looking for reliable Duplex 2205 / UNS S32205 fasteners suppliers & exporters for offshore, desalination, refinery, or petrochemical applications? Aurum Overseas offers bulk supply, custom manufacturing, project export support, and certified industrial fastening solutions with complete inspection documentation and global delivery support. Contact our team today for pricing, technical specifications, and project quotations.
Request a Quote
