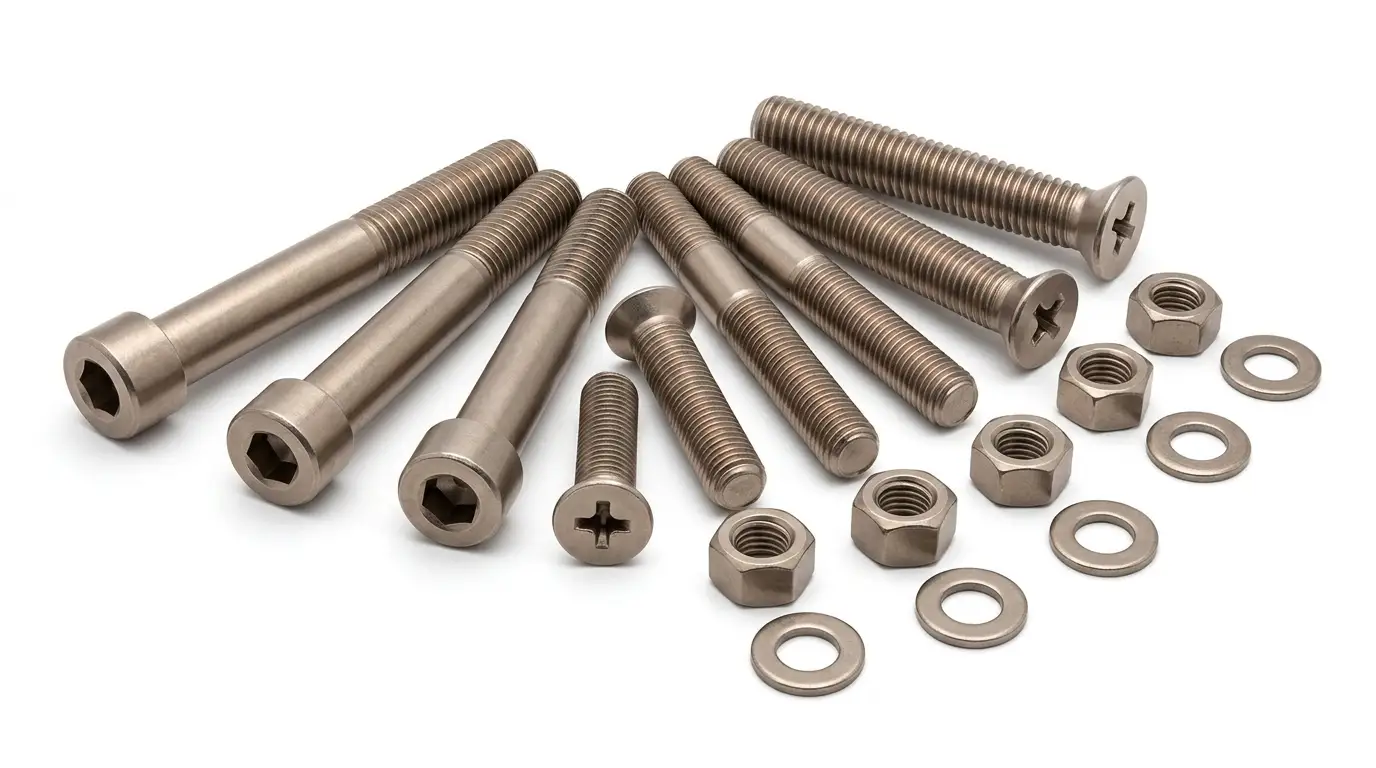

Monel 500 Bolts Supplier & Exporter

Monel 500 Bolts Supplier & Exporter in Europe, US & Gulf

Aurum Overseas is a supplier and exporter of Monel 500 Bolts manufactured for offshore, marine, sour gas, desalination, and high-pressure industrial systems where conventional stainless steel bolting fails under combined corrosion and mechanical stress. We supply industrial bolting solutions in UNS N05500 / Alloy K500 / WNR 2.4375 grades with controlled hardness, verified material traceability, and international export documentation for Europe, the US, and Gulf countries.

These fasteners are widely selected for offshore platforms, subsea assemblies, pump shafts, valve systems, marine equipment housings, chemical processing units, and high-load flange connections operating in chloride-rich and seawater environments. Compared to Monel 400, Monel 500 delivers significantly higher tensile and yield strength through precipitation hardening while maintaining exceptional resistance to seawater corrosion, alkalis, hydrofluoric acid, and sour gas service conditions.

Monel 500 Bolts for Offshore, Marine & High-Pressure Industrial Applications

Aurum Overseas supplies Monel 500 fasteners for industrial systems where both corrosion resistance and structural strength are required simultaneously. In offshore and marine environments, standard stainless steel bolts often suffer from chloride-induced stress corrosion cracking, galling, or strength loss under cyclic loading. Monel 500 is selected because it combines the corrosion resistance profile of Monel 400 with substantially higher mechanical strength.

In subsea and offshore piping assemblies, Monel 500 stud bolts and heavy hex bolts are commonly used for pressure-retaining flange systems exposed to saltwater spray, vibration, and aggressive marine atmospheres. The alloy also performs reliably in sour gas environments containing hydrogen sulfide where hardness control and NACE compliance become critical procurement requirements.

What Makes Monel 500 Different from Standard Monel Alloys?

Monel 500 differs from standard Monel 400 through the controlled addition of Aluminum and Titanium, which allow the alloy to undergo precipitation hardening during heat treatment. This metallurgical transformation significantly increases tensile and yield strength while preserving the corrosion resistance characteristics associated with nickel-copper alloys.

Unlike conventional stainless steel fasteners that primarily rely on chromium oxide passive films, Monel 500 develops its performance through a combination of nickel-rich corrosion resistance and precipitation-strengthened microstructure stability. This makes the alloy particularly effective in high-load offshore assemblies where both mechanical stress and chloride exposure occur simultaneously.

The age-hardening process must be tightly controlled during manufacturing because excessive hardness can reduce ductility and increase susceptibility to hydrogen embrittlement in sour service applications. Aurum Overseas follows controlled manufacturing and hardness verification procedures to maintain structural reliability in critical industrial applications.

Chemical Composition of Monel 500 (UNS N05500 / WNR 2.4375)

The aluminum and titanium additions are responsible for precipitation strengthening during the age-hardening cycle. This allows Monel 500 bolts to achieve significantly higher tensile properties than Monel 400 while retaining resistance to seawater corrosion and alkaline environments.

The elevated nickel content provides strong resistance to chloride attack and stress corrosion cracking, while copper enhances performance in marine and hydrofluoric acid applications.

Mechanical Properties of Monel 500 Bolts

Monel 500 bolts are selected for structural bolting systems requiring high preload retention, resistance to cyclic fatigue, and long-term dimensional stability under vibration. Offshore engineers frequently specify Monel 500 for heavy flange systems because the alloy maintains its strength under combined seawater exposure and mechanical stress.

The high yield strength allows smaller diameter fasteners to achieve the same load-bearing capability as larger conventional stainless steel bolts, reducing assembly weight and improving compact equipment design.

Physical Properties & Thermal Stability of Monel 500

Monel 500 demonstrates strong dimensional stability across fluctuating operating temperatures, making it suitable for offshore and marine environments exposed to thermal cycling. The alloy also maintains mechanical integrity at sub-zero temperatures, supporting cryogenic and cold-environment installations.

Its low magnetic permeability makes the material suitable for specialized marine and defense-related applications where magnetic interference must be minimized.

Monel 500 Bolts Types & Industrial Fastener Forms

Aurum Overseas supplies Monel 500 fasteners in multiple industrial configurations for offshore, structural, marine, and pressure-retaining systems.

Heavy hex bolts and stud bolts are among the most commonly procured Monel 500 products in Gulf offshore projects and North Sea marine applications due to their superior resistance to chloride-rich environments.

Dimensional Standards, Thread Types & Supply Range

This dimensional flexibility supports refinery projects, offshore modules, marine construction, and pressure vessel fabrication across multiple international project specifications.

Monel 500 Bolts Manufacturing Process & Heat Treatment Control

Monel 500 is significantly more difficult to machine than conventional stainless steels because the alloy rapidly work-hardens during cutting and threading operations. Improper machining can produce surface tearing, dimensional instability, and thread integrity problems.

To maintain structural reliability, Aurum Overseas follows controlled manufacturing parameters that support high-strength industrial bolting applications.

Large-diameter Monel 500 bolts are generally hot forged to maintain internal grain continuity, while rolled threads are preferred over cut threads because they improve fatigue life and reduce stress concentration points under cyclic loading.

The precipitation hardening cycle must remain tightly controlled because over-aging can reduce ductility and negatively affect sour gas performance.

Hydrogen Embrittlement & Sour Gas Resistance in Monel 500 Fasteners

Monel 500 bolts are widely used in sour gas and offshore hydrocarbon processing environments where hydrogen sulfide exposure can lead to sulfide stress cracking in improperly hardened fasteners.

Aurum Overseas supplies Monel 500 fasteners with controlled hardness and material verification aligned with NACE MR0175 / ISO 15156 requirements for sour service environments.

This makes Monel 500 an important material for offshore drilling systems, refinery piping, desalination plants, and high-pressure subsea installations operating in corrosive marine environments.

Monel 400 vs Monel 500 Bolts (Engineering Selection Comparison)

Monel 400 remains an excellent choice for corrosion-focused applications where extremely high mechanical strength is not required. Monel 500 is typically selected when offshore systems require both seawater resistance and elevated structural load capacity.

For projects prioritizing higher preload retention, fatigue resistance, and offshore structural strength, Aurum Overseas recommends Monel 500 fasteners for long-term operational reliability in aggressive service conditions.

Quality Assurance, Inspection & Certification Standards

Every Monel 500 bolt batch supplied by Aurum Overseas undergoes strict inspection and traceability verification before export dispatch.

These quality controls are essential for offshore, refinery, and marine procurement projects where fastener failure can create major operational risks.

Export Packaging & International Shipping Protection

Aurum Overseas supplies Monel 500 bolts for Europe, US, and Gulf markets using export-grade seaworthy packaging systems designed to prevent thread damage, corrosion exposure, and transit contamination.

We regularly ship Monel 500 fasteners through major export routes connecting Nhava Sheva to Rotterdam, Houston, Newark, Jebel Ali, and other global industrial ports.

Monel 500 Bolts Supplier in Europe, US & Gulf

Europe
Aurum Overseas supplies Monel 500 bolts for North Sea offshore systems, marine engineering projects, desalination plants, and pressure equipment applications requiring EN 10204 certification and DIN/ISO dimensional compliance.

United States
Our Monel 500 fasteners are supplied according to ASTM and ASME standards for refinery systems, offshore Gulf of Mexico projects, marine construction, and chemical processing plants across the US industrial sector.

Gulf Countries
For Gulf markets including UAE, Saudi Arabia, Qatar, and Oman, Aurum Overseas supplies Monel 500 bolts for offshore oil platforms, desalination facilities, petrochemical infrastructure, and high-salinity marine environments requiring NACE-compliant bolting systems.

Related Grade — Monel 400 Bolts

For applications where corrosion resistance is prioritized over extremely high mechanical strength, Monel 400 Bolts remain a cost-effective nickel-copper fastener solution. Monel 400 performs exceptionally well in seawater, hydrofluoric acid, and marine environments while offering easier machinability and lower production cost compared to Monel 500.

Projects requiring significantly higher preload retention, fatigue resistance, and offshore structural strength typically transition toward Monel 500 fasteners for long-term operational reliability.
